Description
Built to Perform
Built to Last.

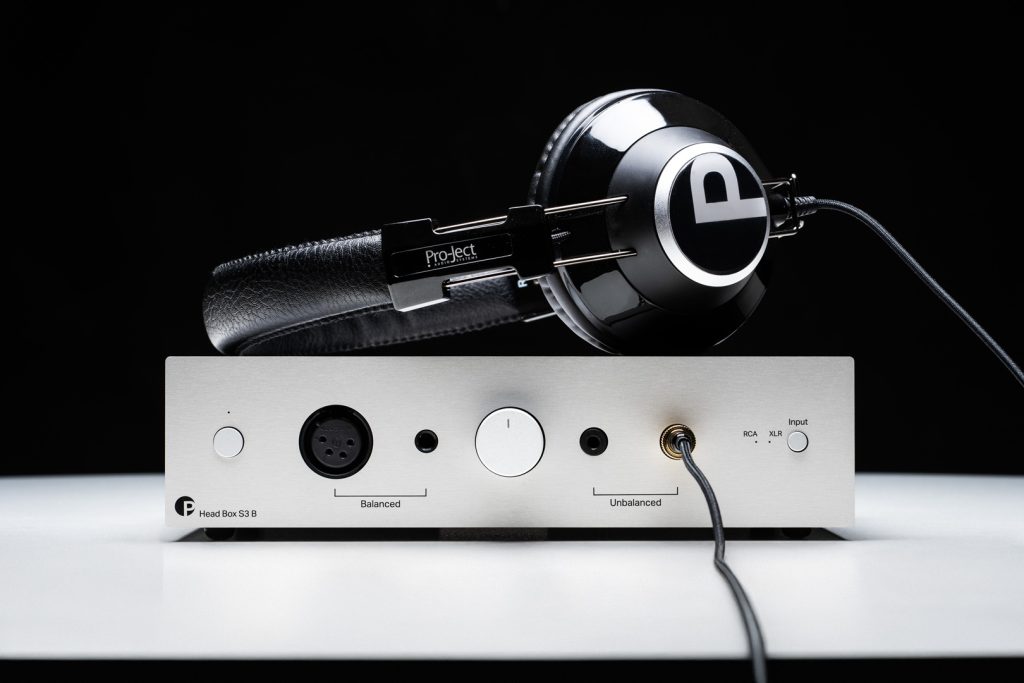

The Head Box S3 B is a high-performance headphone amplifier built around a unique, fully balanced topology that redefines what is possible in its price class. Designed for audiophiles who demand surgical clarity, precision, and flexibility, it supports both balanced and single-ended headphones and integrates seamlessly into modern desktop and hi-fi systems.

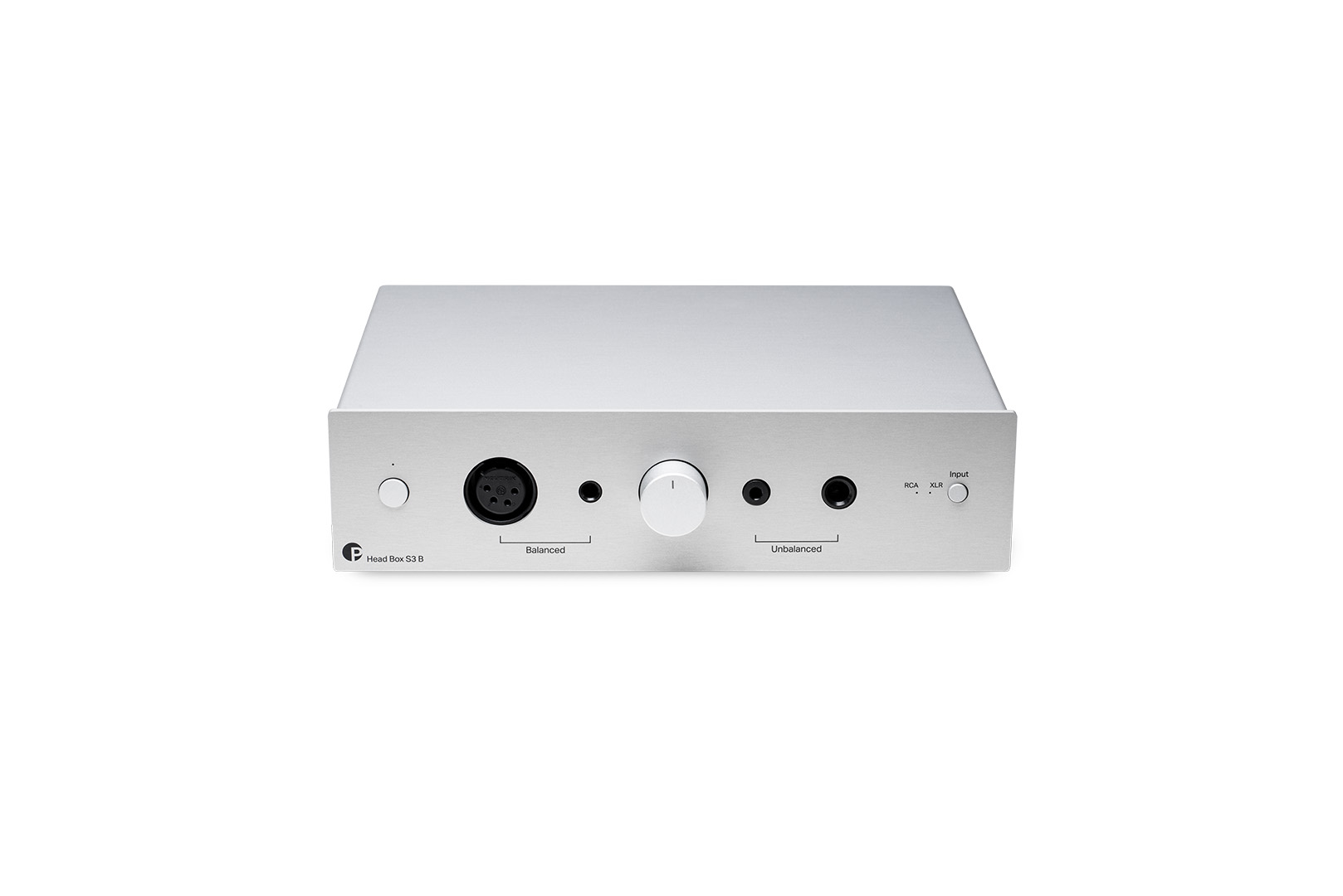

Available in silver or black, the Head Box S3 B is made in Europe, reflecting a commitment to precise manufacturing, long-term reliability, and high engineering standards.
Fully Balanced Power
Technically, the Head Box S3 B features a fully balanced signal chain for both RCA and XLR inputs, ensuring maximum channel separation and minimal noise.

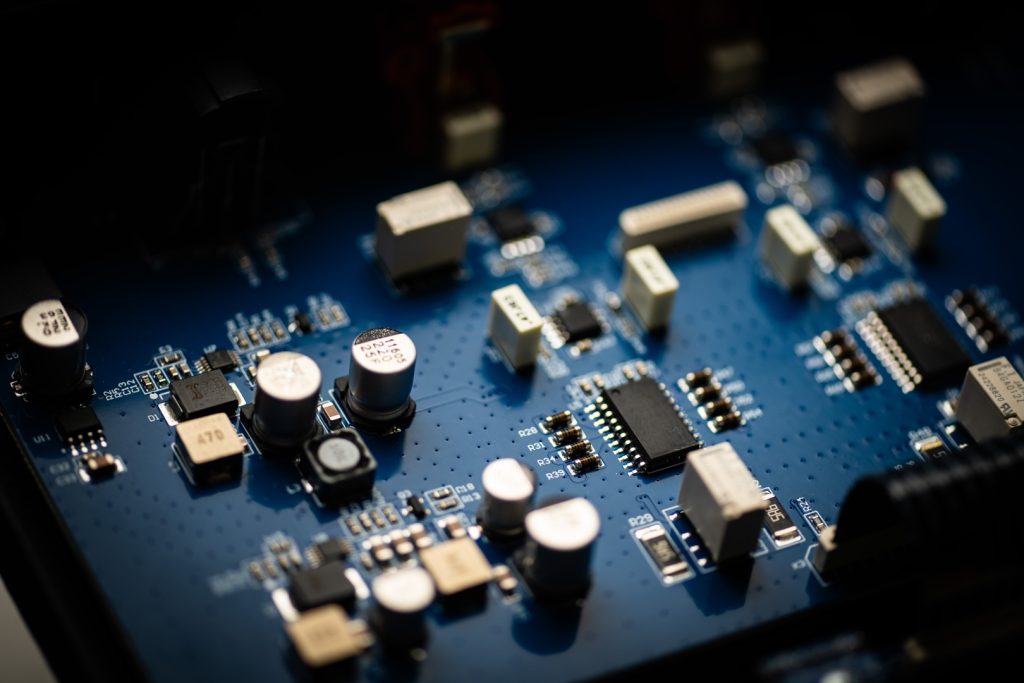

Its power stage is realized with two TPA6120A2 amplifier chips, delivering up to 820 mW of fully balanced output power.

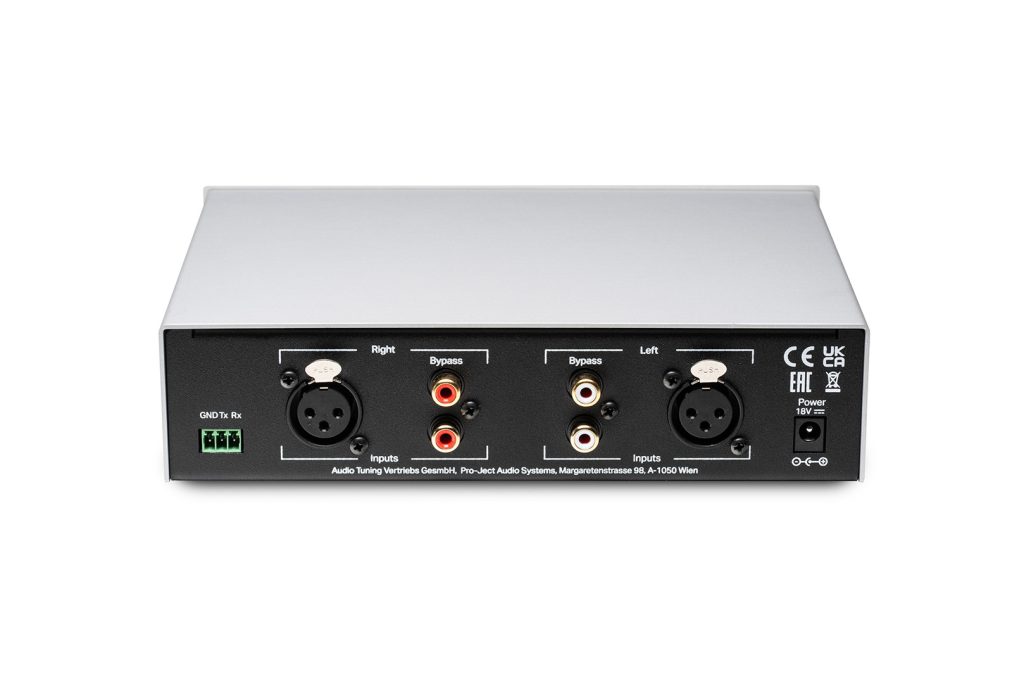

Balanced headphone connections are available via 4.4 mm Pentaconn and XLR outputs, while single-ended headphones are supported through 3.5 mm and 6.3 mm outputs. A bypass RCA loop output allows easy connection to an additional amplifier or further system expansion.
| Max. power output: | 480mW/8 Ohms, 680mW/16 Ohms, 820mW/32 Ohms, 320mW/300 Ohms |
| Headphones output: | 3.5mm, 6.3mm, 4.4mm balanced, 4 pin balanced XLR |
| SNR: | 115dB โAโ-wt. at 1kHz |
| THD: | < 0,002% at 1kHz @ 500mV Input |
| Crosstalk: | < -81dB at 10kHz |
| Gain: | 15dB / 9dB (RCA In /XLR In) |
| Frequency response: | < -0,25dB at 20Hz-20kHz |
| Analogue inputs: | 1 pair RCA/Cinch, 1 pair XLR |
| Analogue loop outputs: | 1 pair RCA |
| Headphone impedance: | min. 8 Ohms |
| Power supply: | 18V/1A DC, 110-240V, 50/60Hz |
| Standby Power consumption: | < 0,5W |
| Dimensions W x H x D: | 206 x 55 x 153 (170) mm |
| Weight: | 950 g without power supply |
